the bracket has integrated mounting holes for sockets DS-1280ZJ-XS (Hikvision), DH-PFA134, DH-PFA135, DH-PFA136 (Dahua), TD-YXH0104 (TVT)

x

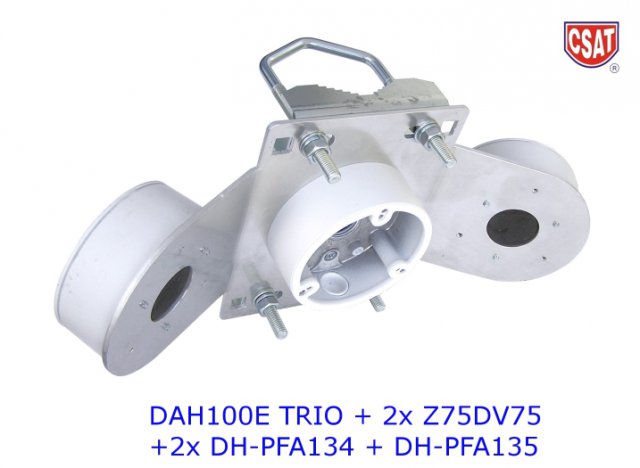

DAH100E TRIO + 2xZ75DV75  can also be used for other mounting bases (cameras), the preparation of the necessary mounting holes (Ø3.5mm) is not difficult as the sheet metal DAH100E TRIO is made of aluminum alloy (AlMg3)

 x

The oval holes allow the use of other mounts in addition to the Z75DV75, e.g. UA75

x

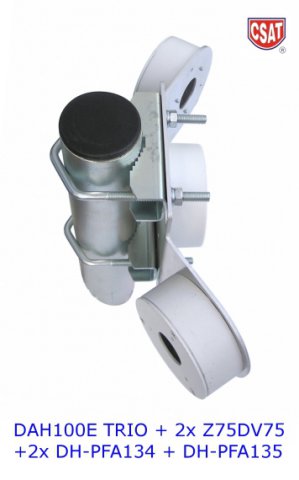

the bracket contains two Z75DV75 handles, which allow installation on a pipe or pole with a diameter from 32 to 65 mm

x

supplied accessories: 9 pcs of self-tapping screws DIN7516 M4x10

x

weight : 0,88kg
